An oil water separator removes petroleum from wastewater before sewer or storm drain discharge. The Environmental Protection Agency enforces a 10 mg/L effluent oil limit under 40 CFR 419 for petroleum facilities. Without it, a sheen discharge can trigger a Clean Water Act violation that starts at $67,544 per day under current federal penalty schedules.
Gas stations, truck maintenance bays, airport hangars, and vehicle wash pads all rely on this device, which works on density alone. Oil floats, water sinks, solids settle, and a baffle system separates the three layers before the clean effluent leaves the tank. That sounds simple, yet sizing errors, missed maintenance, and the wrong separator type account for most of the discharge violations cited by state environmental agencies each year.
This guide covers how the unit works, which regulations apply, which size and type fits your site, what it costs, and how often it needs service. The numbers come from API Publication 421, the Uniform Plumbing Code, state industrial pretreatment manuals, and current quotes from environmental contractors across the country. Treat the cost ranges as 2026 reference points; regional labor, soil conditions, and POTW pretreatment fees push every project up or down by 10 to 20 percent.
Skip the sizing math and the site fails its next inspection.
What an Oil Water Separator Does and Where It Belongs
At its core, an oil water separator is a tank designed to exploit the 0.15 g/mL density gap between free oil and water. Water enters through an inlet baffle and flow slows. Oil droplets float to the surface, sediment drops to the sludge zone, and treated effluent exits near the bottom through an outlet weir. The American Petroleum Institute codified this design in API Publication 421, first issued in 1990 and widely referenced by state permit writers.
The device handles free and dispersed oil. It does not work on emulsified oil, dissolved hydrocarbons, or chlorinated solvents. A site that mixes degreasers or runs high pressure hot water wash systems usually needs a secondary treatment step. Options include a coalescing filter, a dissolved air flotation unit, or a carbon polishing stage. Knowing the waste stream composition before specifying equipment prevents the most expensive sizing mistake of all, which is buying the wrong treatment train entirely.
Facilities that typically need a separator include fueling stations, fleet truck yards, and equipment wash racks. Airport hangars with fuel handling, rail maintenance shops, transformer pads, petroleum bulk plants, and vehicle service bays with floor drains also qualify. Residential driveways almost never need one. The exception is a property with heavy heating oil spillage, but domestic runoff rarely carries enough free petroleum to exceed the 10 mg/L effluent standard.
Commercial kitchens install a grease interceptor instead. A grease interceptor and an oil water separator look similar but are not interchangeable. The first captures animal fats and the second captures petroleum hydrocarbons, and most jurisdictions ban cross use because the waste streams go to different disposal facilities under separate manifests.
Federal and State Regulations That Apply
Three federal programs drive oil water separator requirements. The Clean Water Act of 1972 established the National Pollutant Discharge Elimination System under 40 CFR 122, which regulates any point source discharge to surface water. Facilities with aboveground oil storage of 1,320 gallons or more fall under the Spill Prevention, Control, and Countermeasure rule at 40 CFR 112. That rule lists separators as an acceptable secondary containment practice. Petroleum refineries face additional limits under 40 CFR 419, the effluent limitation guidelines for the refining category.
State plumbing codes drive the installation side. The Uniform Plumbing Code section 1014 and the International Plumbing Code section 1003 both require a separator. Either applies wherever a drain could carry petroleum to a sanitary sewer or storm drain. Local publicly owned treatment works add their own pretreatment standards, often capping influent oil and grease at 100 mg/L on the discharge side.
Stormwater permitting adds another layer. The EPA Multi Sector General Permit for industrial stormwater covers several sectors. Auto salvage yards, scrap recyclers, fuel distribution terminals, and rail yards routinely need a separator upstream of their stormwater outfall. State agencies in California, Texas, Ohio, and most industrial states run parallel general permits with similar thresholds.
Enforcement follows a predictable pattern. A discharge monitoring report that shows oil and grease above 10 mg/L typically triggers a notice of violation within 30 days. A penalty assessment follows if repeat exceedances occur. Federal penalties under the Clean Water Act run up to $67,544 per day per violation. The 2024 inflation update set that figure, and states layer their own per day fines on top.
Types of Separators: Gravity, Coalescing, and Hydrodynamic
Gravity separators rely on quiet flow and extended residence time. An API type gravity separator is built to API Publication 421 specifications. It typically measures 6 feet wide by 12 to 30 feet long, with retention times of 20 to 40 minutes. These units handle large flow rates at refineries, truck terminals, and petroleum bulk plants. However, they struggle below 10 gallons per minute because the influent does not move a consistent layer to the weir.
Coalescing plate separators pack inclined plates or oleophilic media inside a smaller tank. The plates force oil droplets to merge into larger globules, which rise faster under Stokes law and exit the influent stream within 2 to 5 minutes. A coalescing unit removes droplets down to 20 microns in size. A simple gravity separator only handles 150 microns, so smaller tank footprints still meet the 10 mg/L effluent target.
Hydrodynamic separators use vortex flow to drop solids and skim floatables in one pass. Municipal stormwater programs in Oregon, Washington, and Minnesota increasingly specify these for roadway and parking lot runoff because the unit fits in a single precast manhole. They handle sheet flow stormwater well but are less effective against heavily loaded industrial wastewater, so most petroleum facilities combine a hydrodynamic inlet with a downstream coalescing polisher.
The wrong type costs real money. A gas station that installs a residential plumbing interceptor in place of a proper coalescing unit usually sees discharge failures within the first wet season. An NPDES violation letter and an expensive rip and replace install follow once the state permit writer runs a sheen test at the outfall.
Sizing and Installation Requirements
Sizing starts with peak flow. Plumbing code calculations use fixture unit counts. Each vehicle service bay floor drain contributes 6 fixture units, each wash rack 12, and each fuel island trench drain 8 per dispensing position. The total converts to gallons per minute through UPC Table 1014.3.6, which sets the minimum separator capacity. A three bay auto shop typically sizes out at a 750 gallon unit.
Stormwater sites size by water quality volume. Most state design manuals use the 85th percentile 24 hour storm, which ranges from 0.5 inches in arid regions to 1.5 inches along the Gulf Coast. A 2 acre commercial lot in New Jersey typically requires a separator rated for 60 gallons per minute to capture the design storm without bypass.

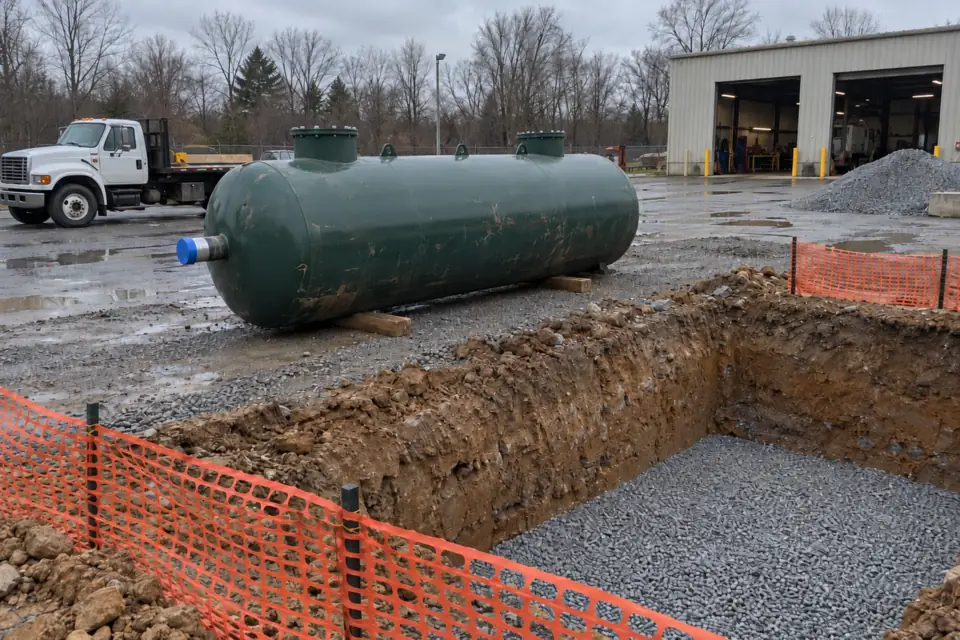

Installation requires permit coordination. Most jurisdictions require a plumbing permit plus either a sewer use permit from the local publicly owned treatment works or a stormwater construction permit from the state environmental agency. The interceptor must sit on compacted bedding and vent to atmosphere through a dedicated riser. It also needs a gas tight cover rated for H20 traffic load if set in a drive lane. See tank installation in Ohio for comparable permit coordination work on the fuel side.
State rules vary meaningfully. Florida, for example, requires secondary containment beneath the separator if it holds more than 100 gallons of recoverable product. Minnesota mandates pretreatment permit review for any industrial site discharging over 15,000 gallons per day, with the exception of sites already covered by an individual industrial wastewater permit. Before pouring concrete, request a quote from a licensed contractor to lock in permit scope up front and avoid a redesign mid project.
Cost to Install and Operate
Equipment cost scales with capacity. A 500 gallon coalescing unit for a small auto shop runs $2,500 to $4,500 from major manufacturers. A 1,000 gallon commercial coalescing tank runs $6,000 to $9,000, and a 5,000 gallon API gravity unit for a truck terminal runs $18,000 to $35,000. Custom fiberglass reinforced plastic or stainless designs for chemical service can reach $75,000 on larger industrial sites.
Installation labor typically doubles the equipment price. Excavation, bedding, concrete saw cutting, permit fees, and plumbing tie ins for a 1,000 gallon tank run $8,000 to $15,000 in most metropolitan markets. Sites that also need site assessment work in New Jersey or trench drain replacement can push the all in project to $30,000 or more. The oil tank soil testing guide covers the subsurface investigation line item in more detail.
Operating cost is mostly pumping. A properly sized unit needs pumping every 90 days on average, and each service runs $400 to $900 depending on sludge volume and travel distance. Haulers charge more for oily wastewater that tests above 5 percent oil because it ships to a permitted treatment facility rather than a standard publicly owned treatment works.
Lifecycle savings favor oversizing. Doubling tank volume usually adds 20 percent to equipment cost but cuts pumping frequency in half. A 1,000 gallon unit often pays back a 500 gallon alternative within 4 years. Regional excavation rates vary: see oil tank removal in Texas for Gulf Coast labor benchmarks and licensed UST contractors in Texas for in state installer options.
Inspection, Maintenance, and Sludge Disposal
Inspection cadence is set by permit, unless the POTW authority writes stricter local terms. A typical NPDES industrial stormwater permit requires monthly visual inspections, quarterly sampling for oil and grease, and an annual certification of the separator. SPCC regulated sites add a monthly tank integrity walk and a 5 year engineering review under 40 CFR 112.8. Missing any scheduled inspection is the single most common finding during EPA compliance audits.
Field checks focus on three measurements. Operators measure oil layer thickness with a clear sampling tube, sludge depth with a sludge judge, and water clarity at the outlet with a visual sheen test. Industry practice pumps the tank when the oil layer reaches 6 inches, the sludge layer reaches 12 inches, or a sheen appears at the outfall. Sampling protocols vary by state; review tank inspection testing in California for state specific monitoring frequency rules.
Waste disposal is closely tracked. Recovered oil ships on a bill of lading to a used oil recycler regulated under 40 CFR 279. Sludge often classifies as RCRA hazardous waste F037 or F038 at petroleum sites and requires a uniform hazardous waste manifest under 40 CFR 262. Keep 3 years of manifests on site for any state or federal compliance inspection.
Record keeping separates compliant sites from cited sites. A clean binder with pump tickets, analytical reports, monthly inspection checklists, and a current SPCC plan is what an EPA inspector expects to see within 10 minutes of arrival. Sites that produce paperwork on request almost always close out an inspection without a notice of violation. Sites that scramble for documents routinely draw a follow up audit within 60 days.
Your Next Step: Hiring a Qualified Contractor
Installer qualifications matter. Look for a contractor with a state plumbing license, documented experience with SPCC regulated facilities, and references from at least three commercial or industrial sites. UST licensed contractors familiar with tank closure procedures often handle oil water separator projects as a parallel service, because the permit paths and excavation work overlap.
Get at least three quotes. Scope should be identical across bidders: same tank volume, same material, same bedding, same piping tie ins, and the same permit scope. Apples to apples pricing is the only way to spot the low bidder cutting corners on secondary containment or vent design. A written scope document protects the owner during final inspection.
Tie the project to adjacent work where possible. A property undergoing a Phase I ESA investigation or a tank decommissioning often saves 10 to 25 percent on mobilization if the separator install runs on the same permit. States like New Jersey publish contractor lists through their licensing boards; check licensed UST contractors in New Jersey for vetted installer options.
Plan for the long haul. A well sized and properly maintained separator protects a site from Clean Water Act penalties. Service life runs 20 to 30 years before structural repair or replacement is typically required. The up front investment is a few thousand dollars of engineering, permits, and a few days of careful installation. That cost is far less than a single NPDES violation letter from the state permit writer or a consent decree from an overlooked sheen complaint at the outfall.
